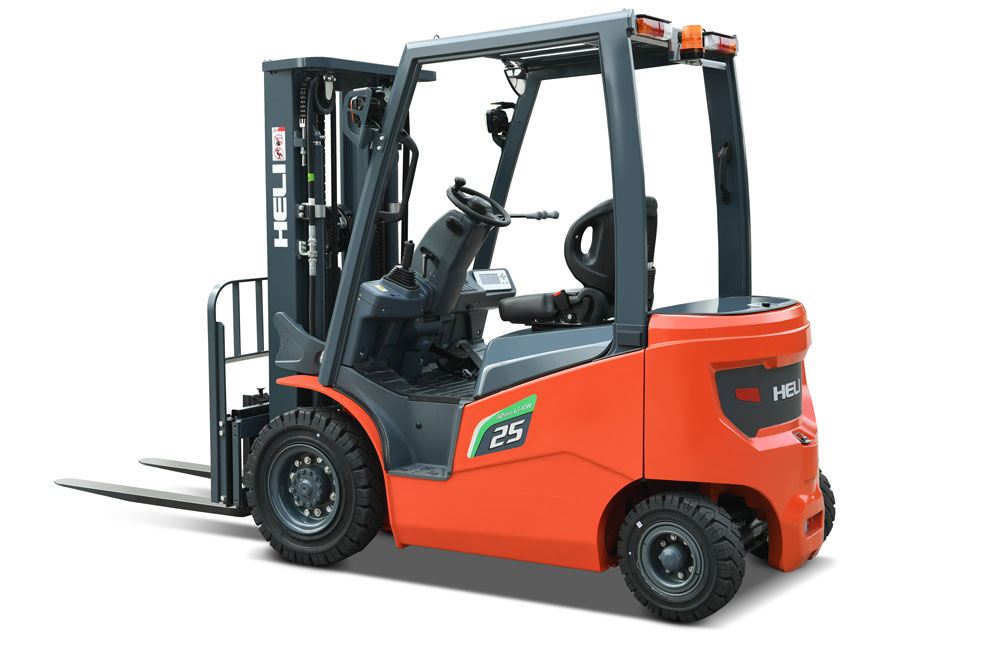

HELI G2 Series Lithium Yard Forklift Trucks
Meet your Net Zero Commitments With The Lithium Revolution
The HELI G2 Counterbalance Lithium Forklift Truck range are purpose-built forklift trucks with versatility in mind. Powered by either a 271 Ah, 404 Ah, 544 Ah, or 606 Ah CATL Lithium Iron Phosphate (LiFePO4), these machines meet almost every forklift user need out in the field. The 4-Wheel G2 Lithium range ranges from 1,500 kg to 3,800 kg in lifting capacity, with various sizes and mast heights available, allowing the platform to be directly tailored to the needs of a business. In a contemporary world where carbon neutrality is a core focus of politics, economy, and operations, businesses need a fast, low-cost, and versatile solution to meeting their net zero commitments, which is where the HELI G2 Lithium Forklift Trucks excel.
This page will detail the specifications of the G2 1,500kg–3,800kg forklift trucks currently available across Essex, Suffolk, London, Hertfordshire, and Kent and provide insightful knowledge on the benefits of lithium, the G2 range, and the applications in which these forklifts will elevate operational efficiencies.
The CATL Lithium Iron Phosphate Battery (LiFePO4)
Safety
Fire Risk
It is very common to open the news and see videos, images, and articles about the most recent lithium fire due to the combustion of an EV or E-Scooter lithium batteries. However, unlike the lithium batteries used in industries such as automotive and consumer electronics, the lithium batteries provided with the HELI G2 forklift truck are LiFePO4 made form Iron Phosphate instead of Nickle-Cobalt-Aluminium (NCA) commonly found in on-the-road EV cars. LiFePO4 lithium batteries have a far greater safety standard reducing the risk of fires due to combustion to near zero and are considered the safest of lithium batteries on the market.
Water Damage
On the G2 Heli Lithium Forklift Trucks, each battery is encased within a steel box built into the chassis and bolted shut. Above the battery casing is a sealed hood which can be opened for access. The two layers of protection here afford the battery with IPX4 rating against rain and other splashes of water such as driving through puddles. Therefore, the battery is highly unlikely to be damaged by water unless it is fully submerged.
Benefits
Lifespan
In terms of cycle life, the LiFePO4 lithium batteries provide a significant advantage over lead-acid batteries and NCA lithium. LiFePO4 lithium generally last up to 5,000 full cycles before disposal. If you were to discharge the battery and recharge every single day for an entire year (365 days), LiFePO4 lithium can last up to 10-years or more.
Opportune Charging
The most significant benefit to lithium forklift trucks over lead-acid is the ability to opportune charge. This process allows you to charge the truck at any point in the day for as long, or as little, as you wish boosting the work-time of the battery without damaging the battery. For example, if you have a 404 Ah battery with a 200Ah charger which is standard for many of the G2 Lithium Heli Forklift Trucks, a driver may start his shift at 08:00 with a full charge. By his lunch break at 13:00 (45-minutes) the battery may show a 40 % charge. If the driver charges the truck during his break, he may come back to the truck showing 75%-90% charge. This is a massive benefit for operations unable to commit to electric material handling solutions due to shift patterns where the truck will not be out of use for 8-12 hours at a time.
Maintenance Free
The G2 Heli Lithium Forklift Truck allows for one of the most important advancements in the material handling industry in recent years. Zero daily battery maintenance, or upkeep by operators. This means that forklift drivers, operations managers, and other operational staff do not need to open the hood of the Heli G2 Lithium Forklift under any circumstance as there are no checks required on the battery and no water needed unlike the lead-acid platforms. This greatly reduces risk of operator exposure to harmful chemicals and substances present on lead-acid batteries.
HELI G2 Lithium S Range (In-Built Charger)
The S Range
Fork Truck Direct offer 7 models of the S in-built charger G2 lithium-ion counter balance forklift truck across Essex, Suffolk, Hertfordshire, Kent, and London. These models range from 1,500kg in lifting capacity all the way up to 3,800kg at 500mm load centres with mast options between 3.6m all the way to 7.5m.
These forklift trucks comes standard with the following battery capacities:
1,500kg - 1,800kg: 80V | 150Ah
2,000kg - 2,500kg: 80V | 202Ah
3,000kg - 3,800kg: 80V | 272 Ah
Although these capacities come as standard, there are optional, larger batteries which can be installed for additional cost.
Optional Extras
All models from the Heli G2 S Range can have the following optional extras:
- Fully Enclosed Steel Cab with Windscreen Wipers, Heaters, and Air Conditioning.
- External Surround LED (Coloured) Lighting.
- 4th Hydraulic Valve for Attachments.
- Suspension Seating.
Please Note: Some optional extras may not be present on this list. If there is a specific feature you require, please contact a member of our sales staff.
Benefits of the S Range
The HELI G2 S Range stands out among the list of lithium-ion forklift trucks currently on the market due to it's unique benefit. The vehicle comes equipped with charger built into the vehicle sitting on-top of the battery unit. This therefore requires no standalone charging unit which would take up space that could be used elsewhere, and makes the charging process far simpler.
To charge a HELI G2 Lithium S, all you need is one of the below:
- 80V 16A Socket (Commander Socket)
- 80V 13A 3-Pin Plug (Standard Domestic)
Application
The HELI G2 S Range with it's unique in-built charger has a unique position within the assortment of potential lithium forklift trucks available. Due to the in-built charger unit on the vehicle, battery sizes are more limited which is reflected within the types of operations the vehicle is designed for. The ideal application for the vehicle is as follows:
- Intensity: Light (1-3 Hours Per Day Usage)
- Environment: Suitable both indoors and outside where space for standalone charging units are limited.
- Power Supply: Buildings which lack the infrastructure to have larger power supplies such as 3-phase and/or 31-64 A breakers are ideal.
- Cost: The S Range is designed to be an entry-level, cost effective lithium platform especially if budgetary constraints are concerned.
- Examples: Precision Engineering Industry, Packaging Industry, Food and Beverages Industry, Agriculture, Distributors.
Charge and Runtime (S-Range)
Battery Capacity
150Ah
202Ah
Runtime Hours
4.7 Hours
5.8 Hours
Charge Time (35Ah)
4.1 Hours
5.4 Hours
Charge Time (25Ah)
5.6 Hours
7.5 Hours
HELI G2 Lithium M Range (Long-Lasting Battery)
The M Range
We offer 7 models of the M larger battery G2 lithium-ion counter balance forklift truck across Essex, Suffolk, Hertfordshire, Kent, and London. These models also range from 1,500kg in lifting capacity all the way up to 3,800kg at 500mm load centres with mast options between 3.6m to 7.5m.
These forklift trucks comes with the following battery capacities:
1,500kg - 1,800kg: 80V | 202 Ah to 271 Ah
2,000kg - 2,500kg: 80V | 271 Ah to 456 Ah
3,000kg - 3,800kg: 80V | 346 Ah to 604 Ah
Please Note: Some of the battery options listed above are not standard. Please ask a member of our sales staff for more information on standard battery capacities.
Features
For all the HELI G2 Series lithium forklift trucks, operators benefit from the smart yet safe technology as well as familiar and understandable operational features. These features include:
- Electronic Display: battery charge state, wheel orientation, power mode, speed, gear.
- Automatic Deceleration: removing the need for inching and slowing down on corners, automatic deceleration works with the driver to reduce fatigue while performing at the same operational efficiency.
- Optimised Comfort and Familiarity: with fully adjustable GRAMMAR seats as standard, a mechanical handbrake, and levers positioned within the operators view, every aspect of the vehicle is easily understandable and comfortable for drivers.
Performance Statistics
Across all the HELI G2 Series lithium forklift trucks, users benefits from the efficiency of the high performance of the vehicle. Some of the notable performance statistics include:
- Maximum Gradeability with Load: 22%
- Top Driving Speed: 19-20 KM/H
- Lifting Speed with Load: 0.48 m/s
- Lifting Speed without Load: 0.6 m/s
- Total Height: 1995mm to 2180 mm
With a high maximum gradeability, powerful electric motors, and a maximum height of 2180mm, the HELI G2 Forklift is ideal for ramp and container work.
Application
The HELI G2 M Range has more modularity when tailoring to specific applications due to the various battery capacities available. This allows the M range to be built with more intense applications in mind. The ideal application for the vehicle is as follows:
- Intensity: Medium to Heavy (4-8 Hours Per Day Usage)
- Environment: Suitable both indoors and outside on less maintained surfaces.
- Charger (100Ah): Requires three-phase 32A breaker and socket.
- Charger (200Ah): Requires three-phase 63A breaker and socket.
- Cost: The M Range is designed to be an reliable yet cost effective lithium platform especially if runtime is a concern.
- Examples: Logistics & Distribution, Food & Beverages industry, Production & Manufacturing, Wholesale, Container Unloading.
Charge and Runtime (M-Range)
Battery Capacity
202Ah
271Ah
404Ah
542Ah
604Ah
Runtime Hours
6.0 Hours
7.3 Hours
8.6 Hours
10.7 Hours
12.8 Hours
Charge Time (100Ah)
2.0 Hours
2.6 Hours
3.8 Hours
5.1 Hours
5.6 Hours
Charge Time (200Ah)
1.3 Hours
1.4 Hours
2.0 Hours
2.6 Hours
2.9 Hours
Fuel Cost Comparison Calculator
Use the below calculator to estimate how much you can save by switching from diesel and/or gas powered forklifts to lithium today!
Please Note: For the calculator below, you will need information such as your cost per KwH, cost per litre of diesel, and cost per 18kg gas bottle.
Calculator below presents estimations of potential cost savings between electric, diesel, and gas, and is no way a factual representation of actual costs as such costs can vary depending on electricity, diesel, and gas market rates as well as consumption of fuel.
